Product Description
Baumalight Flail Mower Excavator | Model MX230 | 30" Cutting Width | 4,000LBS-9,000LBS | For Excavator
DESCRIPTION

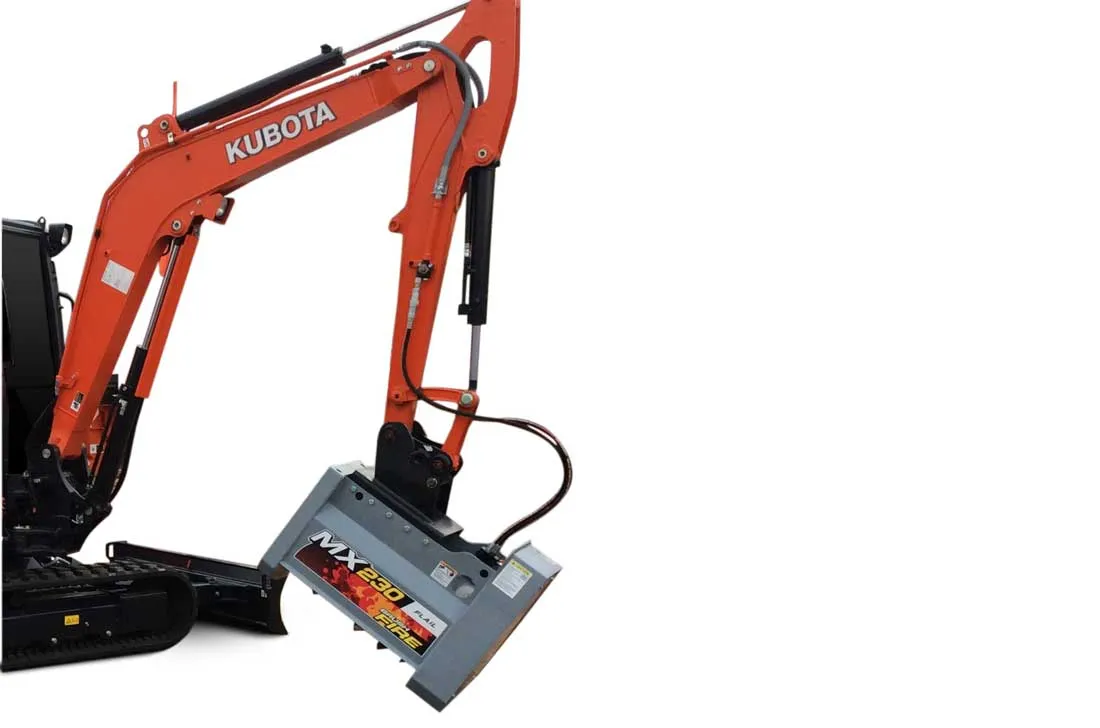

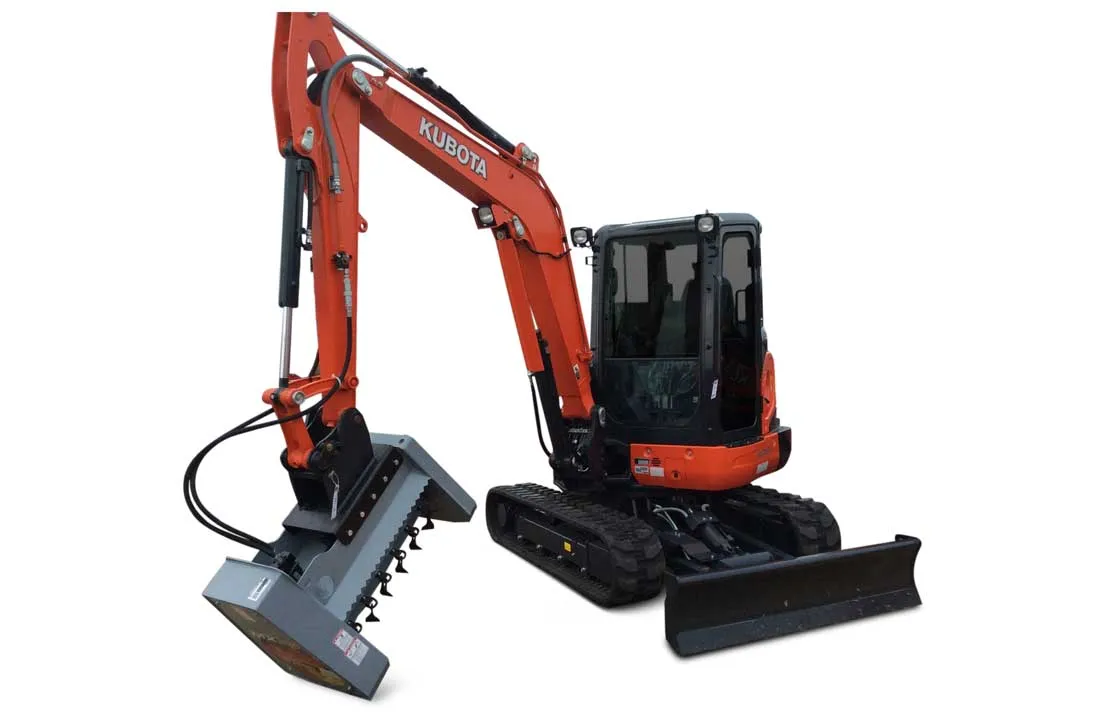

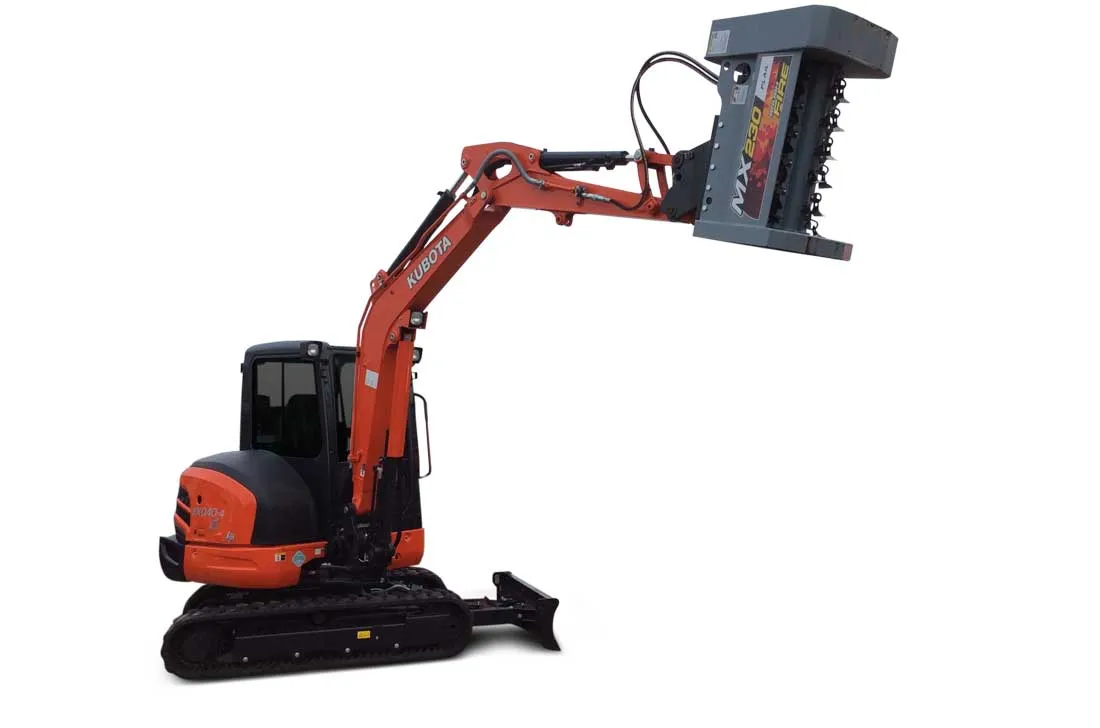

The Baumalight 30" Flail Mower is a versatile and powerful attachment designed for excavators weighing between 4,000 lbs and 9,000 lbs. This flail mower is ideal for efficiently cutting heavy grass, brush, and small trees, making it perfect for land clearing and maintenance tasks.
Key Features
Baumalight 30" Flail Mower for excavators:
- Cutting Width: 30 inches, providing a wide cutting path for efficient operation.
- Compatible Excavator Weight: Suitable for excavators weighing between 4,000 lbs and 9,000 lbs.
- Hydraulic Flow Range: Operates efficiently with a hydraulic flow range of 20 GPM to 50 GPM.
- Heavy-Duty Construction: Built to withstand rigorous use, ensuring durability and long-lasting performance.
- Flail Teeth: Equipped with robust flail teeth that swing back when hitting stones, reducing damage and maintenance costs.
- Versatile Application: Ideal for cutting heavy grass, brush, and small trees, making it perfect for land clearing and maintenance tasks.
- Easy Attachment: Designed for quick and secure attachment to your excavator, enhancing productivity and ease of use.
- Low Maintenance: Features sharpenable cutting blades and replaceable tips, reducing overall maintenance costs.
Integrated skid shoes
These durable skid shoes help the Brush Mulcher to better float over the ground for optimal mulching action.
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.

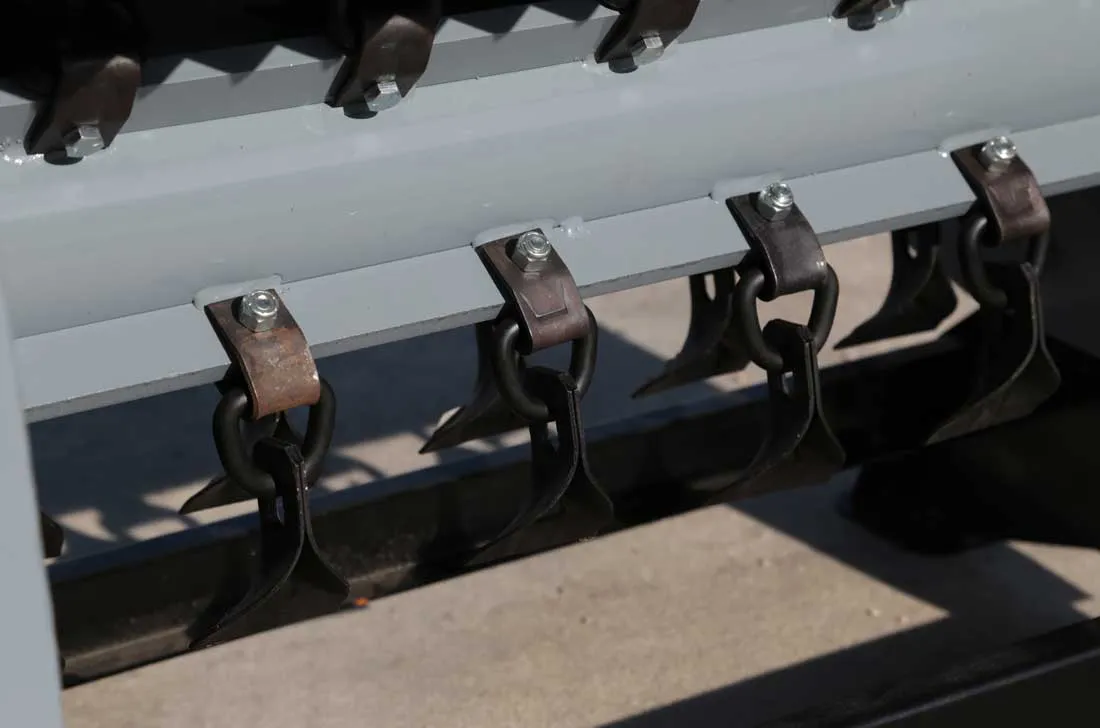

200 SERIES FLAIL TEETH
Currently available on our 200 Series mulchers, these flail type cutters are an economic and efficient way to beat back heavy vegetation and light to moderate brush. Ideally suited for small carriers, these flails provide good cutting performance and great mulching. Bolt-on replaceable for quick and easy servicing, even in the field.
Upgrade to our Heavy Blade Teeth and instantly increase your mulching capacity. These upgraded heavy duty blade teeth are 6mm thick and will allow you to double your brush size mulching capacity without any other equipment adjustments required.
6 FREE TEETH
All MX230 Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
Spiral Tooth Pattern
For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.
Overtorque Protection - Relief Valve
The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
Powder Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
VIEW OUR HELPFUL COUPLER SIZING CHART
Couplers must be ordered separately as we do not supply hydraulic couplers with product due to the variety carrier specifications. Click the link below.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 30" Flail Mower |
| Compatible Excavator Weight | 4,000 lbs to 9,000 lbs |
| Cutting Width | 30 inches |
| Hydraulic Flow Range | 20 - 50 GPM |

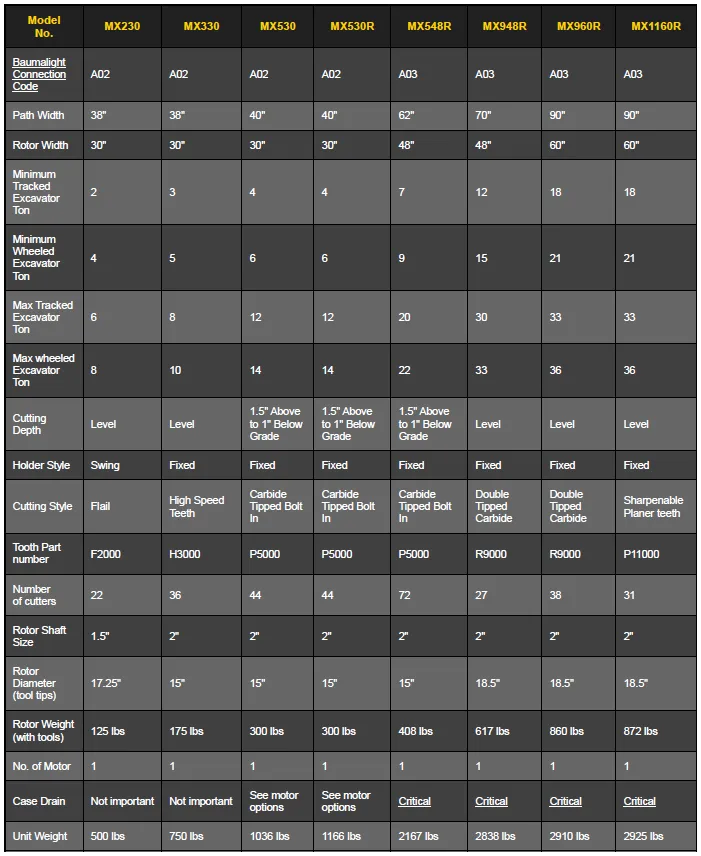

Comparison Chart
| Specification | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| Baumalight Connection Code | A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max Wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part Number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of Cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| Number of Motors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not Important | Not Important | See Motor Options | See Motor Options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
