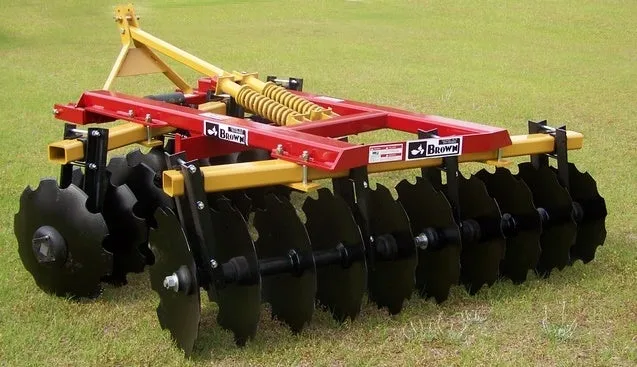

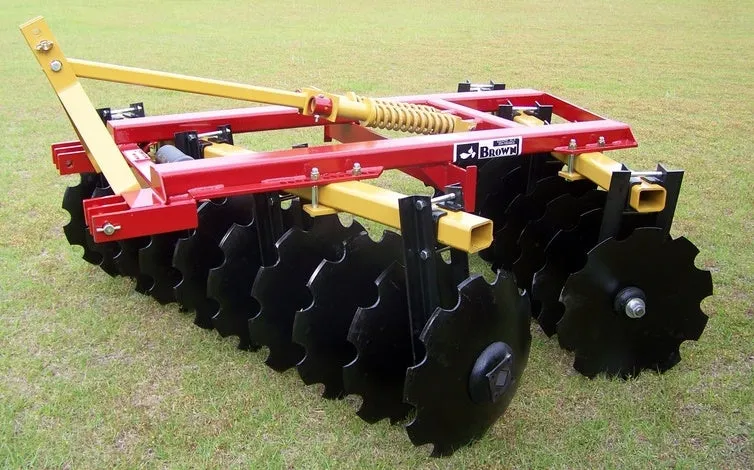

Brown Offset Disk Harrow Heavy-Duty 3PT Tractor Attachment | Multiple Cutting Widths | 60-85HP For Tractor
DESCRIPTION
Brown's Offset Disk Harrow is the ultimate heavy-duty solution for agricultural soil preparation, designed to handle tough field conditions with ease. Constructed with a welded tube frame and fitted with 7-gauge (0.177", 4.5MM) notched disk blades, this all-purpose harrow provides robust performance and durability. Each model is equipped with a trunnion-mounted, triple-lipped, sealed steel ball bearings for longevity and reduced maintenance. The harrow features an Easy-Lever gang adjustment, high-strength forged gang axles, and comes Quick Hitch compatible for convenient attachment. Available in three cutting widths—6', 7'6", and 9'—the Offset Disk Harrow is ready to meet the demands of large-scale farming operations.
The Brown Offset Disk Harrow's notched 22" blades and 9" blade spacing deliver optimal soil cutting and furrow filling, creating a uniform seedbed for planting. Its high-strength, forged 1-1/8" axles ensure durability and smooth operation even under heavy loads, making it ideal for clearing land and preparing soil for crops.
Key Features
- Heavy Duty Frame: Welded tube frame for enhanced strength
- Gang Adjustment: Easy-Lever system for smooth operation
- Triple-Lipped Bearings: Trunnion-mounted, sealed steel ball bearings for durability
- Forged Axles: 1-1/8" gang axles for reliable strength
- Notched Blades: 7-gauge (0.177", 4.5MM) for effective soil penetration
- 22" Blade Size: Optimized for thorough soil mixing and leveling
- Furrow Fillers: Standard feature for consistent soil preparation
- Quick Hitch Compatible: Easy attachment to compatible tractors
- Available Widths: Choose from 6', 7'6", or 9' models
- Heavy-Duty Design: Built to endure tough soil conditions
Detailed Specifications
| Specification | Details |
|---|---|
| Model | OSL-600-1622 |
| Part # | OSL-600-1622 |
| Cutting Width | 6' |
| Minimum HP | 60HP |
| Blade Count | 16 |
| Blade Diameter | 22" |
| Weight (lbs) | 1310 |
| Specification | Details |
|---|---|
| Model | OSL-750-2022 |
| Part # | OSL-750-2022 |
| Cutting Width | 7'6" |
| Minimum HP | 75HP |
| Blade Count | 20 |
| Blade Diameter | 22" |
| Weight (lbs) | 1455 |
| Specification | Details |
|---|---|
| Model | OSL-900-2422 |
| Part # | OSL-900-2422 |
| Cutting Width | 9' |
| Minimum HP | 85HP |
| Blade Count | 24 |
| Blade Diameter | 22" |
| Weight (lbs) | 1830 |
In Package
- Brown Offset Disk Harrow (selected model: 6', 7'6", or 9')
- Instruction Manual
Available Options
- No additional options available for this model
