Product Description

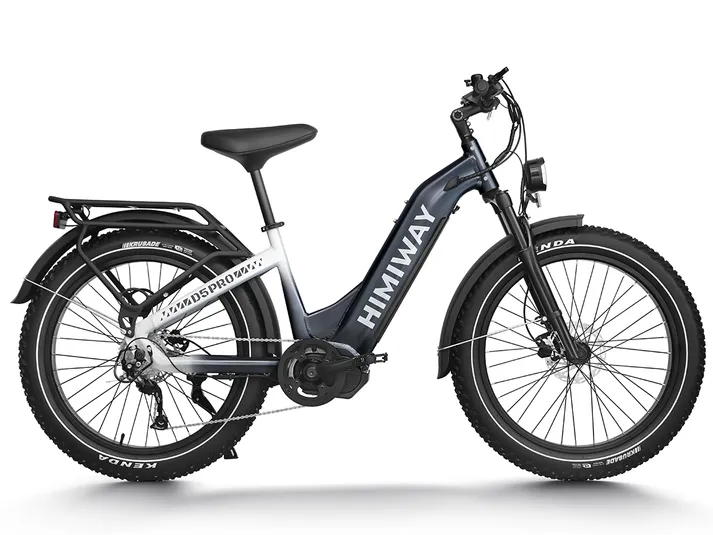

Himiway D5 Pro ST Premium All-terrain Electric Fat Bike | 500W | 48V 20Ah
DESCRIPTION
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5 PRO ST. It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80 miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
- Short Circuit Prevention
- Over-load Prevention
- Reverse Prevention
- Wiring Protection
- Over-current Prevention
- Over-charging Over-discharging
- Cell Balancing
- Temperature Control
The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.
The D5 Pro torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Key Features
- Powerful Motor: 500W mid-drive motor with 1300W peak power for tackling steep inclines and challenging terrains.
- Extended Range Battery: 48V 20Ah Samsung/LG battery supports 60 miles on pure electric mode and 80 miles with pedal assist.
- Enhanced Stability: Thick 6061 aluminum frame ensures superior durability and supports a payload of up to 400 lbs.
- Efficient Torque Sensor: Provides real-time electric assist adjustments for smoother, energy-efficient rides.
- Durable Fat Tires: 26"x4" Kenda tires guarantee strong grip and stability on all terrains and weather conditions.
Detailed Spcifications
| Feature | Specification |
|---|---|
| Frame | 6061 Aluminum |
| Motor | 500W Mid-Drive (1300W Peak Power) |
| Battery | 48V 20Ah Samsung/LG Lithium-Ion |
| Range | 60-80 Miles |
| Tires | Kenda K-shield 26"x4" |
| Brakes | Tektro HD-E3520 Hydraulic Brakes |
| Suspension | TRAMA FAT34-PLS-26" (100mm Travel) |
| Payload Capacity | 400 lbs |
| Display | KD718-P LCD with Type-C Charger |
| Weight | 79 lbs (with battery) |
| Rider Height | 5'3" - 6'5" |
Geometry
| Measurement | Value (inches) |
|---|---|
| Total Length | 78.7 |
| Handlebar Height | 47 |
| Wheelbase | 49.2 |
| Minimum Seat Height | 20.9 |
| Maximum Seat Height | 31.4 |
| Standover Height | 31.1 |
| Head Angle | 65° |
In Package
- Himiway D5 Pro Electric Bike
- Detachable 48V Samsung/LG Battery
- US Standard 3.0 A Smart Charger
- Kickstand and Assembly Tools
- User Manual and Warranty Information
Safety Check
- Ensure all components are securely fastened before riding.
- Regularly inspect brakes, tires, and suspension for optimal performance.
- Follow all local regulations for electric bike usage.
