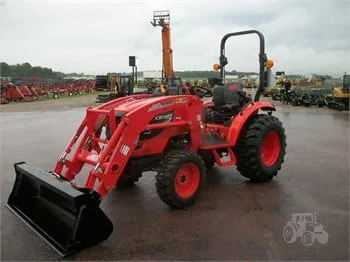

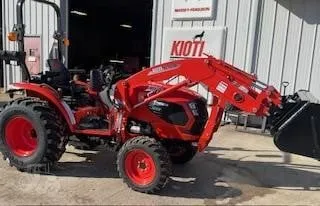

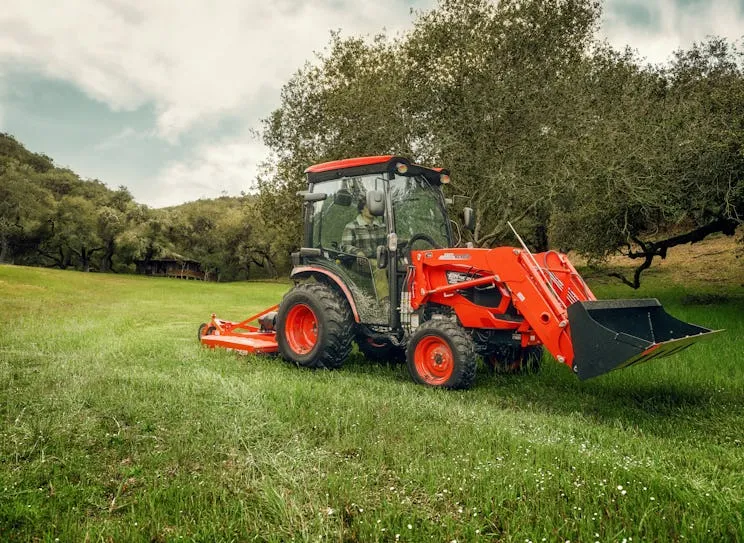

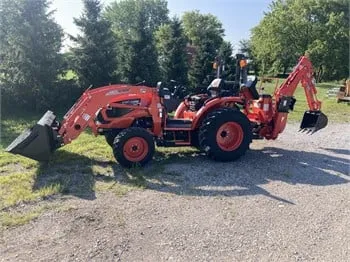

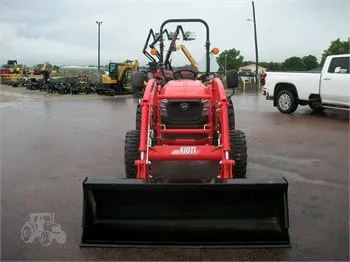

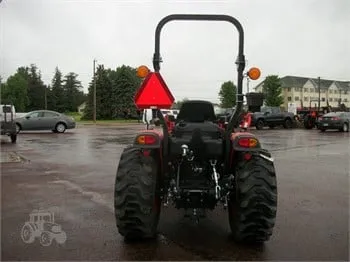

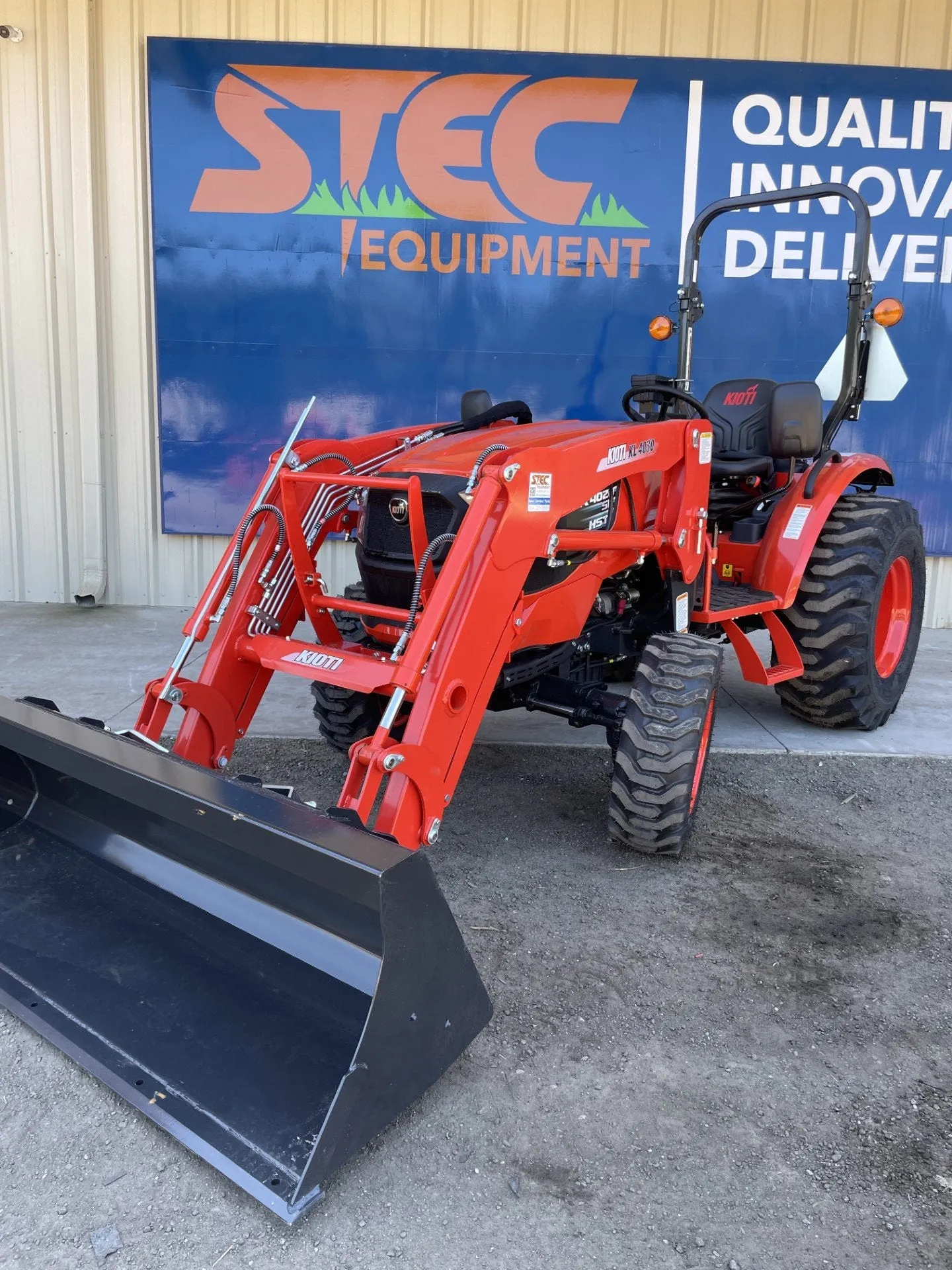

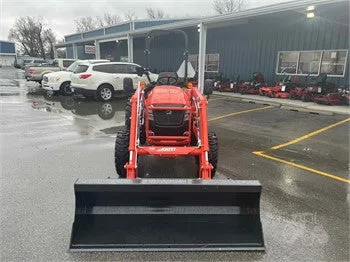

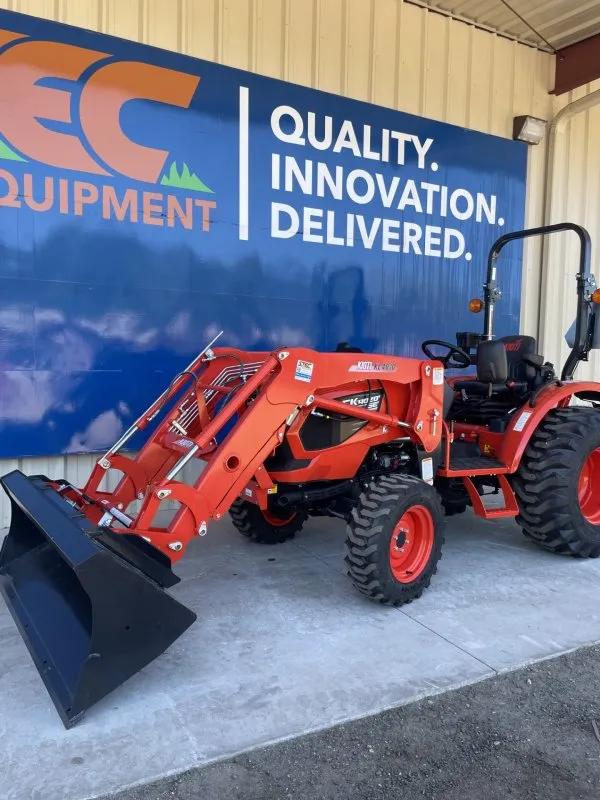

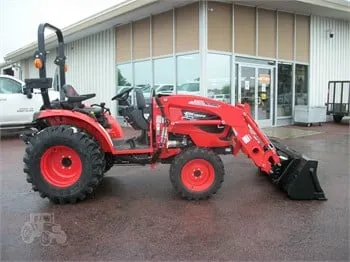

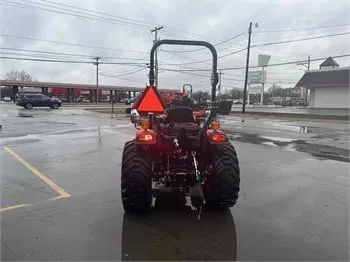

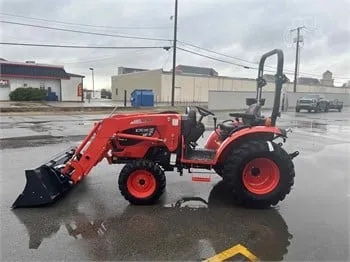

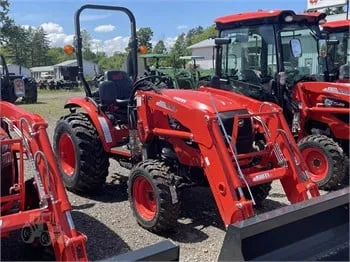

Kioti CK4020SEH Hydrostatic Compact Tractor | 39 HP Diesel Engine | High Ground Clearance
Description
The Kioti CK4020SEH Hydrostatic Compact Tractor offers exceptional comfort, convenience, and performance for small farms, landscaping projects, and general property maintenance. Powered by a 39.6 HP Tier 4 CRDI eco-friendly diesel engine, this tractor provides the strength needed for demanding tasks while minimizing noise and emissions. Its hydrostatic transmission with twin pedals allows effortless control and smooth forward/reverse transitions, eliminating the need for clutch use.
Equipped with advanced features like a single-lever joystick for intuitive loader operation, high ground clearance, and an independent PTO, the CK4020SEH offers reliable versatility. Additional SE model enhancements include tilt steering, a premium seat, rear hydraulic remotes, and a telescoping hitch for efficient attachment control. This model’s robust build, combined with its user-friendly design, ensures both comfort and productivity.
Key Features
- Eco-Friendly Engine: Quiet, 39.6 HP diesel with low emissions
- Hydrostatic Transmission: Smooth control with twin pedal operation
- High Ground Clearance: 13.4 inches for navigating uneven terrain
- Single Lever Joystick: Effortless loader operation with float position
- Rear Hydraulic Remotes: Versatile hydraulic controls for attachments

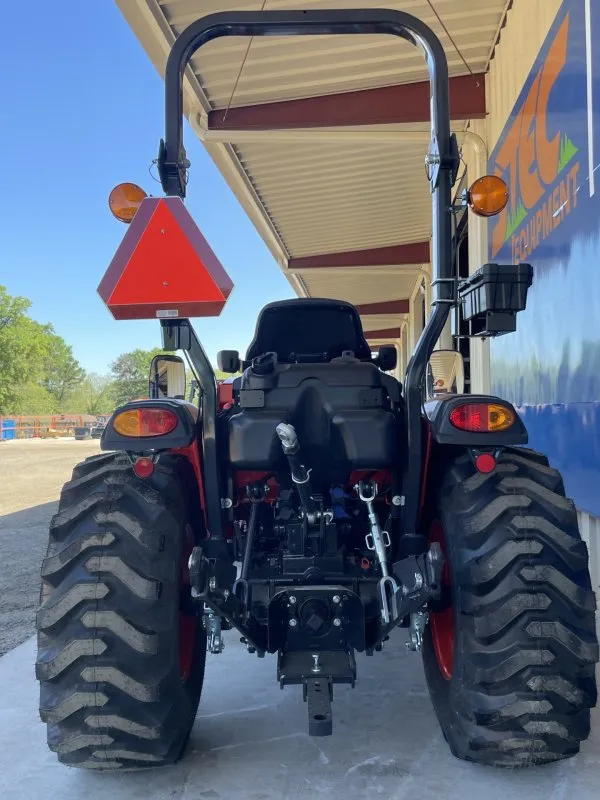

- Telescoping Hitch: Easy attachment with minimal effort
- Independent PTO: Reliable operation with both rear and optional mid-PTO

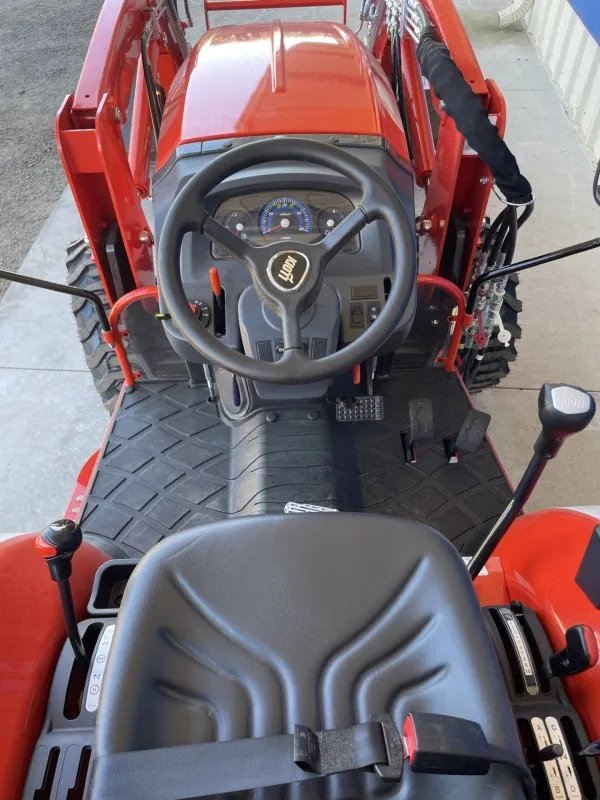

- Comfortable Operator Area: Premium seat and rubber floor mat
- Enhanced Lighting: Projection head and working lamps for night tasks
- Tilt Steering: Adjustable steering for improved operator comfort
Detailed Specifications
| Category | Specification |
|---|---|
| Engine Model | 3H-TM4B |
| Engine Power | 39.6 HP (29.5 kW) |
| Rated Speed | 2,600 rpm |
| Cylinders | 3 |
| Fuel Type | Diesel |
| Displacement | 111.4 cu. in. (1,826 cc) |
| Fuel Tank Capacity | 9 gal (34 L) |
| Transmission Type | Synchro Shuttle, 12 Forward / 12 Reverse |
| Min/Max Travel Speed | 1.03 mph to 15.53 mph (1.7-24.2 km/h) |
| PTO Power | 34.9 HP (26 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Stage |
| Dimensions (L x W x H) | 120.9 x 54.5 x 92.91 in |
| Wheelbase | 65.75 in |
| Ground Clearance | 13.39 in |
| Front/Rear Tread | 48.2 / 47.04 in |
| Turning Radius w/ Brake | 107.48 in (1,730 mm) |
| Hydraulic Pump Flow | 11.3 GPM (42.9 L/min) |
| 3-Point Hitch Category | Category I |
| Lift Capacity (24" Aft) | 1,631 lbs (740 kg) |
| Weight | 2,906 lbs (1,318 kg) |
In Package
- Kioti CK4020SEH Compact Tractor
- Loader Attachment
- Owner’s Manual and Quick Start Guide
Available Options
- Mid PTO Speed: 2,000 rpm (optional)
- Tire Options: Ag, Turf, Industrial
